Muffhugger's BNR s4 build

[muffhugger]

For $1250, I couldn't pass up the new BNR s4. Had been itching to a swap so I started collecting parts. Already had: internals, AP, downpipe, intake, FMIC, and all the basic stuff. Ordered parts and patiently waited for the opportunity.



Finally everything arrived. Even got a high flow "cat." badum tshhhh


Began the swap in my parents' garage. Big thanks to @AnimalMother; for the hand on that first day.









Had my parts all organized with internet access and cold beverages




Got the intake off (AnimalMother) and was ready to take the rail off as well.





With the intake off, I could access the stock PCV plate and upgrade it to a Damond one.





Rail off and injector seals (toyota) ready to go on.





Obligatory comparison picture




All disassembled





Beginning to come together.




Who is that back there?




Dual Catch cans, shoutout to @MATT DAMOND; for coming out and helping me with these guys




So close, just need to get the meth kit installed.




Sometimes I'm a clever bastard. Mounted my EBCS on the battery box with room to spare





All done





Thanks to all that helped physically and remotely aka @WetzMS3; and the members of NATOR IL




Complete mod list:

Autotech internals
Cobb Accessport v3
HTP 3.5” intake
M2 catless downpipe
TurboXS catback
CXracing piping w/ Tr8 core
Bosch 3 BAR MAP
Go Fast Bits Response BPV
XS Power manifold v3
BNR Stage 4
Grimmspeed EBCS 3 port (running in 3 port mode)
HTP Small battery box
51r battery
Corksport Radiator shrouds
Snow Performance stage 2 Meth kit
Damond TB spacer meth port
Relentless customs ported intake manifold w/ VTCS delete
JBR Short throw shifter w/ heavy knob
Damond EGR delete
JBR shift weight
Toyota Injector seals
DFDD injector studs
Streetlite Flywheel
ACT 6 puck clutch
Quaife differential
Whiteline front and rear sway bars
Sonic tuning coil overs
Damond PCV Plate
Damond Catch Cans (Version 3 setup)


Had the opportunity to have it dyno tuned by Justin at FREEKTUNE. Put down 357WHP and 353 WTQ on 93 octane alone. Next step is to tune for the meth and another for e85.


https://www.youtube.com/watch?v=AZka23YzuGc


Any questions about the swap, I am more than willing to give my advise.

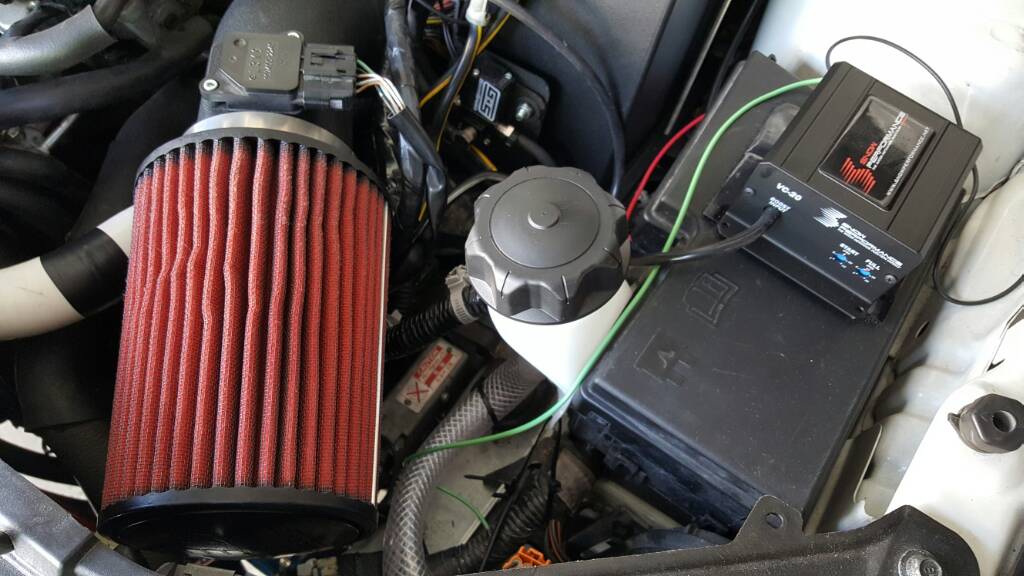

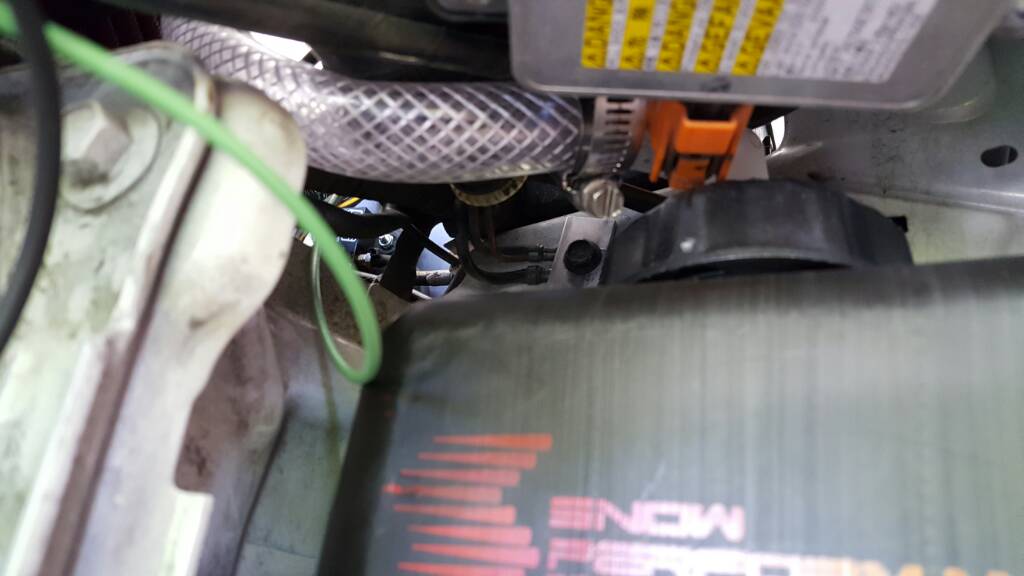

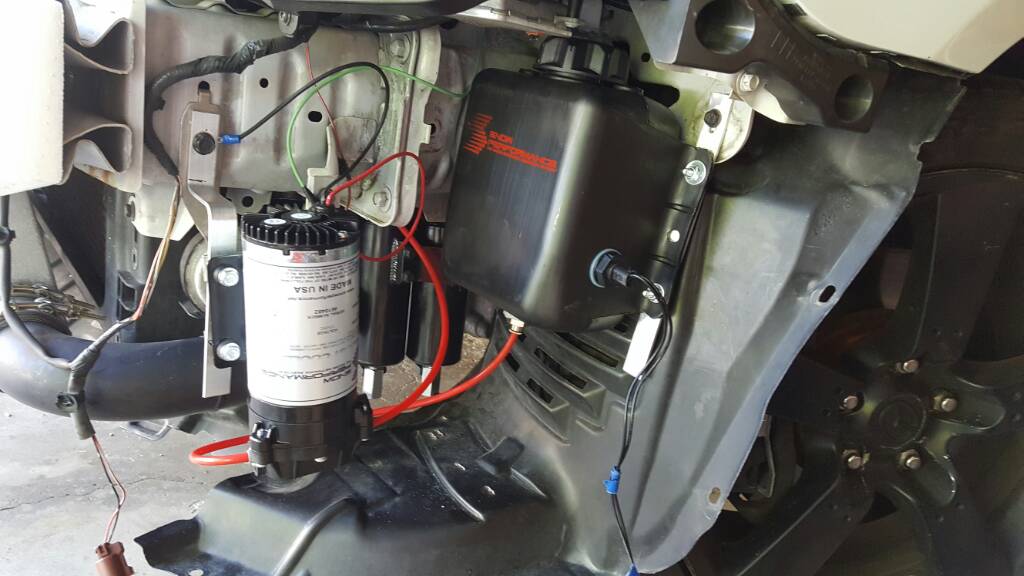

Forgot the pictures of my meth setup:

[Thor Hammer]

Very clean install. Nice!

[WetzMS3]

Looks great Mike! Now get that meth kit firing and have some real fun!

[Thepedigree13]

Nice build. Gives me motivation, for a similar setup.

Great post as well.

[JakeMS3]

Looks good man clean install nice looking engine bay. I think I'm going to start piling up the necessary goodies for a complete swap with the S4 too.

How was the quality on that XS Power manifold? Id like a turbo manifold but not to the tune of $800....

[muffhugger]

Originally Posted by JakeMS3 Looks good man clean install nice looking engine bay. I think I'm going to start piling up the necessary goodies for a complete swap with the S4 too. How was the quality on that XS Power manifold? Id like a turbo manifold but not to the tune of $800....

The welds look great and it's put together really well. The only problem I had was not having the studs in the turbo when I mounted it. It was a tight fit and cost me a day on the install. If you get the locking nuts, you're going to have a hard time getting to 3/4 of the bolts.

[AnimalMother]

Damn, I wish I could read.



And I still don't understand this fantasy world you live in where I helped.


But now we just gotta both get our meth addiction started.

[MS3Shadow]

Awesome build. I'm also going for a similar build.

sent from my Nexus 6P

[tmillner]

Thats great number on 93 octane. Very impressive. Interested to see where you end up

Sent from my SM-N920P using Tapatalk

[sheston]

We need to see some logs :-)

[Gorky_Park]

Beautiful. Thanks for sharing.

[Mazdazilla6]

Looking super clean Mike! Great numbers too! Post a picture of your dyno run, the curve is even better than the numbers!

[Kevopg]

Looks sweet. Any issues throughout the process?

[AnimalMother]

You guys can suck it, I got to drive it.

[joeyspeed3]

Looks great man thats eventually what im going to do with mine

[muffhugger]

Originally Posted by Kevopg Looks sweet. Any issues throughout the process?

The new corksport battery box didn't like the HTP 3.5" so I opted to go with the HTP battery box and a 51r.

The other problem I encountered was the XS power manifold and getting it squeezed between the manifold studs and turbo itself. Then it was getting it lined up onto the turbo flange that proved to be a pain in the ass. Overall if I could do it again, I would take the exhaust studs out by the turbo and leave the studs in on the turbo flange.

[muffhugger]

Wired the meth today. Left LED is low level (red) and the right is the pump activation LED (green). Wired in a kill switch as I don't always want to run meth. That is in the very back of the cubby and has its own LED to let me know if the system is armed or not. This is it off.



And here it is on.

[Djohns]

Now that is legit! I'm in love with that.

[JakeMS3]

Meth install is very clean sir!

[Boost_creep]

That's exactly where I put my red and green led's, when I installed my kit 4 years ago. But I actually put the lights in the left most switch holder, and moved everything else inward. It was easier for my eyes to quickly look at that spot instead of the inner spot that you have it. Makes for a very clean install!

[muffhugger]

Originally Posted by Boost_creep That's exactly where I put my red and green led's, when I installed my kit 4 years ago. But I actually put the lights in the left most switch holder, and moved everything else inward. It was easier for my eyes to quickly look at that spot instead of the inner spot that you have it. Makes for a very clean install!

After testing it out today, this seems like the best course of action. Glad I am not the only one who ran into this. Gonna change this out ASAP

[AnimalMother]

It's always the children that suffer. What does poor George think of your addiction?

[muffhugger]

Originally Posted by AnimalMother It's always the children that suffer. What does poor George think of your addiction?

[CWP_MS3]

Subbed for dyno results. I've been eyeballing this turbo for a while now, so don't let me down by not getting on le rollers.

[WetzMS3]

Originally Posted by muffhugger Had the opportunity to have it dyno tuned by Justin at FREEKTUNE. Put down 357WHP and 353 WTQ on 93 octane alone. Next step is to tune for the meth and another for e85. https://www.youtube.com/watch?v=AZka23YzuGc

Originally Posted by CWP_MS3 Subbed for dyno results. I've been eyeballing this turbo for a while now, so don't let me down by not getting on le rollers.

Bruh.

[muffhugger]

Sprayed a little bit of 50/50 last night with the 375ml nozzle and my BATs went way down to 57 when ambient temp was around 85. Can't wait to switch it out for the 625ml nozzle.

[CWP_MS3]

Originally Posted by WetzMS3 Bruh.

ZFG about 93.... Literally zero. I've been on 93 for maybe an accumulative 2 months in the last 4 years. lol

[WetzMS3]

Originally Posted by CWP_MS3 ZFG about 93.... Literally zero. I've been on 93 for maybe an accumulative 2 months in the last 4 years. lol

Bruh.

[CWP_MS3]

Originally Posted by WetzMS3 Bruh.

I want to see dis shit maxed out.

[WetzMS3]

Originally Posted by CWP_MS3 I want to see dis shit maxed out.

Well, let me direct you to an s4 on meth and a certain intake manifold, that has become limited by the hotside on the s4 according to it's tuner.

https://www.facebook.com/64567593220...1514299287190/

[CWP_MS3]

Originally Posted by WetzMS3 Well, let me direct you to an s4 on meth and a certain intake manifold, that has become limited by the hotside on the s4 according to it's tuner. https://www.facebook.com/64567593220...1514299287190/

I can't see it. What is?

[WetzMS3]

Originally Posted by CWP_MS3 I can't see it. What is?

You don't FB?

https://damondmotorsports.com/blogs/...fold-dyno-data

Dyno sheet in the blog there as well.

Sent from my XT1254 using Tapatalk

[Dommo14]

Noob question but how long did the turbo install it self take?

[muffhugger]

Originally Posted by Dommo14 Noob question but how long did the turbo install it self take?

I am still somewhat a noob myself so it took a while. Keep in mind I had to wait for parts as well so the total time was just under 2 weeks. I wasn't working on it every day as well. I say the hardest part (depending where you live) would be getting the manifold off. I got the car when I was in Washington and it hardly snowed last year, here in Illinois, so I got lucky with not having rust/corrosion issues.

[CWP_MS3]

Originally Posted by WetzMS3 You don't FB? https://damondmotorsports.com/blogs/...fold-dyno-data Dyno sheet in the blog there as well. Sent from my XT1254 using Tapatalk

Little disappoint, but still epic for the price. Standing by for a BNR s5. lol

[WetzMS3]

Originally Posted by CWP_MS3 Little disappoint, but still epic for the price. Standing by for a BNR s5. lol

I agree. I was expecting that car to run out of fuel first and need larger meth nozzles to max out the turbo. Turns out the s4 doesn't like the top end a whole lot.

[CWP_MS3]

Originally Posted by WetzMS3 I agree. I was expecting that car to run out of fuel first and need larger meth nozzles to max out the turbo. Turns out the s4 doesn't like the top end a whole lot.

I just remember everyone thinking we could have 5s with this turbo, but apparently not. Still, if I was in the market for an s3, I would spend the extra 1-200 and buy the s4. Room to grow and it won't give up on the top as easily as a s3 will at lower power levels.

[Dommo14]

Originally Posted by CWP_MS3 I just remember everyone thinking we could have 5s with this turbo, but apparently not. Still, if I was in the market for an s3, I would spend the extra 1-200 and buy the s4. Room to grow and it won't give up on the top as easily as a s3 will at lower power levels.

Yeah it's only $200 more...

[ryguy 3]

Originally Posted by CWP_MS3 I just remember everyone thinking we could have 5s with this turbo, but apparently not. Still, if I was in the market for an s3, I would spend the extra 1-200 and buy the s4. Room to grow and it won't give up on the top as easily as a s3 will at lower power levels.

I hear boost creep is a lot more manageable on the s4 vs the s3.

Sent from my SPH-L720 using Tapatalk

[Boost_creep]

Originally Posted by muffhugger Sprayed a little bit of 50/50 last night with the 375ml nozzle and my BATs went way down to 57 when ambient temp was around 85. Can't wait to switch it out for the 625ml nozzle.

You're going to need that 625 for added fuel, once you start turning the boost up
